Differences between Composite Video and S-video
Composite Video vs. S-Video[edit]

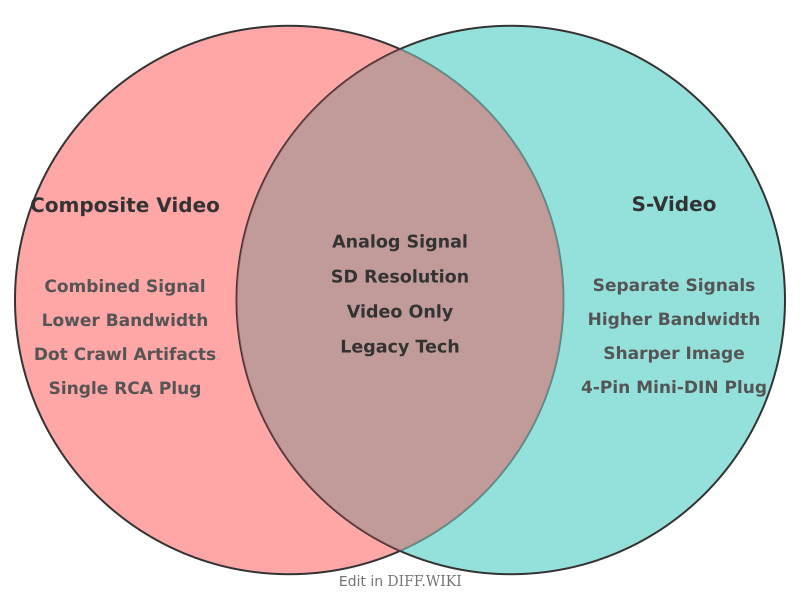

Composite video and S-Video are two analog video signal standards used for standard-definition video.[1][2] While both were common on consumer electronics, they differ significantly in how they transmit video information, which results in noticeable differences in potential image quality.[3] Composite video combines all video data into a single signal, whereas S-Video separates the brightness and color information into two distinct signals.[2][4]
Composite video, also known as CVBS, is an analog format that encodes luminance (brightness, Y) and chrominance (color, C) into one channel. This combined signal also includes synchronization pulses.[5] The encoding process involves modulating the color information onto a subcarrier frequency, which is then mixed with the luminance signal. This method allows the entire video signal to be transmitted over a single cable, typically one with a yellow RCA connector.[1]
S-Video, which stands for "Separate Video," improves upon the composite design by transmitting the luminance (Y) and chrominance (C) signals on separate conductors within the same cable.[2] This separation prevents the signals from interfering with each other, a problem that can cause artifacts like dot crawl and color bleeding in composite video.[2][4] S-Video connections typically use a 4-pin mini-DIN connector. Because the signals are kept separate, there is no need for the television or display to perform the complex process of separating the combined signals, which helps to preserve image sharpness and color accuracy.
Neither Composite Video nor S-Video cables transmit audio, which must be sent via a separate connection. Both standards are limited to standard-definition resolutions, such as 480i or 576i, and were largely superseded by component video and later digital standards like HDMI.
Comparison Table[edit]
| Category | Composite Video | S-Video |
|---|---|---|
| Signal Composition | Luminance (Y) and Chrominance (C) signals are combined into a single channel (Y+C). | Luminance (Y) and Chrominance (C) signals are transmitted on two separate channels.[2] |
| Connector Type | Typically a single yellow RCA connector. BNC connectors are used in professional settings.[1] | Typically a 4-pin mini-DIN connector.[2] |
| Image Quality | Prone to artifacts like dot crawl and color bleeding due to signal interference.[2][4] Results in a softer image. | Sharper image and more accurate color reproduction due to the separation of brightness and color signals.[3] |
| Resolution Support | Standard-definition video, such as 480i or 576i.[1] | Standard-definition video, such as 480i or 576i.[2] |
| Bandwidth | Luminance bandwidth is limited to allow for the color subcarrier, which can soften the image.[2] NTSC video bandwidth is 4.2 MHz. | Higher effective luminance bandwidth as it does not need to be filtered to accommodate a color subcarrier.[2] The luminance channel can have a bandwidth of approximately 5 MHz. |
| Audio Transmission | Does not carry audio. Requires separate cables (typically red and white RCA connectors). | Does not carry audio. Requires separate cables for sound. |
| Common Applications | VCRs, older video game consoles, and other legacy consumer electronics. | S-VHS players, DVD players, camcorders, and some older video game consoles. |
