Differences between HDMI and VGA
Contents
HDMI vs. VGA[edit]

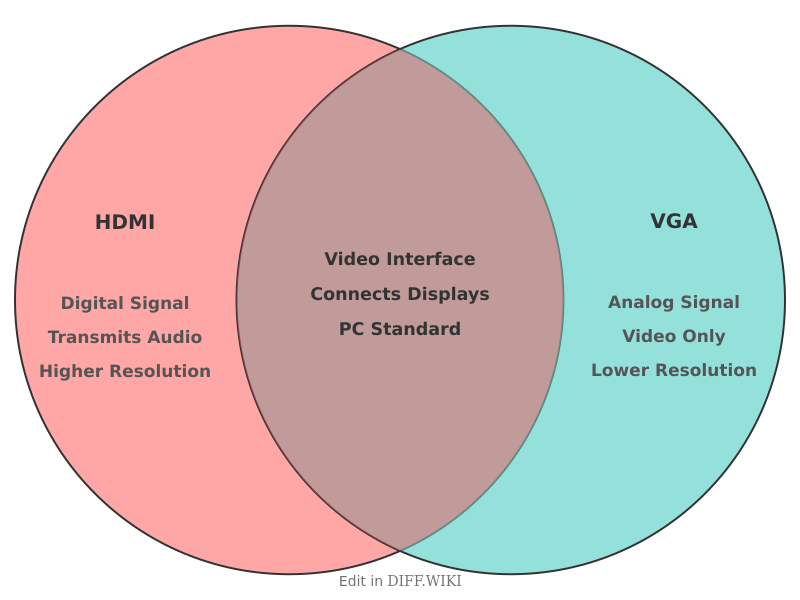

High-Definition Multimedia Interface (HDMI) and Video Graphics Array (VGA) are two types of computer display standards used to connect devices like computers and monitors.[1][2] VGA is an analog standard first released by IBM in 1987.[3][4] HDMI was introduced in 2002 as a digital replacement for older analog standards.[5] The primary difference between them lies in the type of signal they transmit; VGA is analog, while HDMI is digital.
Comparison Table[edit]
| Feature | HDMI | VGA |
|---|---|---|
| Signal Type | Digital | Analog |
| Audio Support | Yes, up to 32 channels | No, requires separate cable[1][2] |
| Max. Resolution | Supports 4K, 8K, and higher | Typically up to 2048×1536 |
| Connector Pins | 19 (Type A) | 15 (DE-15) |
| Content Protection | Supports HDCP [2] | None |
| Year Introduced | 2002 [5] | 1987 |
Signal Type and Quality[edit]
HDMI transmits digital signals, which carry video and audio data as binary code. This results in a signal that does not lose quality over the length of the cable and provides a pixel-perfect image.
VGA, on the other hand, transmits video as an analog signal. Analog signals are more susceptible to signal degradation and interference, especially over longer cable distances or when using lower-quality cables. This can result in visual artifacts such as image ghosting, fuzziness, and less accurate color reproduction.
Audio and Video Capabilities[edit]
A significant difference is that HDMI can transmit both video and digital audio through a single cable. It supports multiple audio formats, including compressed streams like Dolby Digital and lossless formats like Dolby TrueHD, as well as up to 32 audio channels. VGA is limited to transmitting only video signals, requiring a separate audio cable for sound. [2] HDMI standards have evolved to support progressively higher resolutions and refresh rates. HDMI 2.1, for example, can support 4K resolution at 120Hz and even resolutions up to 10K. VGA's maximum supported resolution is generally considered to be 2048×1536 (QXGA), but signal quality at such high resolutions can be inconsistent.
Connectors and Features [3][edit]
The standard HDMI Type-A connector has 19 pins. The VGA connector, a DE-15 (or "HD-15"), has 15 pins arranged in three rows.
HDMI[3] also supports High-bandwidth Digital Content Protection (HDCP), a form of copy protection required by many streaming services and Blu-ray discs. VGA[2] does not support HDCP. HDMI[2] also allows for communication between devices through its Display Data Channel (DDC), which lets a source device automatically learn the capabilities of the display it is connected to.
Modern Usage[edit]
HDMI is the current standard for consumer electronics, used on televisions, modern computer monitors, gaming consoles, and other devices. VGA[2] is largely considered an obsolete standard and is not commonly found on new devices. It is sometimes retained on projectors or specific business hardware for compatibility with older equipment.
