Differences between LCD TV and Plasma TV
Contents
LCD TV vs. Plasma TV[edit]
Liquid-crystal-display (LCD) and plasma were two competing flat-screen television technologies in the early 2000s. By 2014, major manufacturers like Panasonic, LG, and Samsung had ceased production of plasma TVs, ceding the market to LCDs.[1][2] While both offered a significant reduction in size and weight compared to the cathode ray tube (CRT) televisions they replaced, their underlying methods for producing images were fundamentally different.[3]
An LCD TV uses a backlight to shine light through a panel of liquid crystals.[4][5] These crystals can be electronically twisted or untwisted to block light or allow it to pass through color filters, creating the pixels that form the image on the screen.[4] Plasma TVs, in contrast, are emissive displays, meaning each pixel generates its own light.[1] They contain tiny cells filled with a gas mixture.[1] When a voltage is applied, this gas turns into a plasma, which emits ultraviolet (UV) light.[1] This UV light then strikes red, green, and blue phosphors, causing them to glow and produce a visible image.[1]

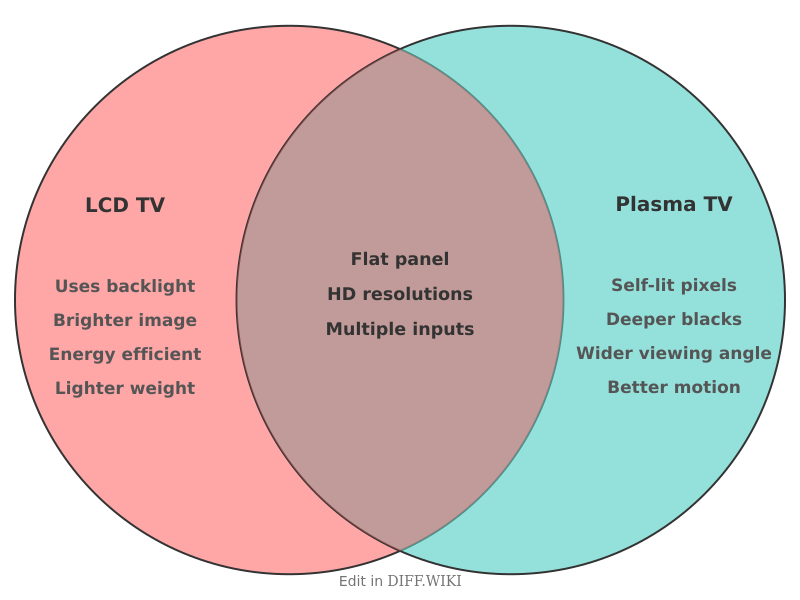

Comparison Table[edit]
| Category | LCD TV | Plasma TV |
|---|---|---|
| Display Technology | Uses a backlight and liquid crystals to modulate light.[4] | Each pixel is a cell of gas that emits its own light when excited.[1] |
| Black Levels & Contrast | Generally has shallower blacks due to backlight bleed-through, resulting in a lower contrast ratio.[1] | Can produce deeper blacks by turning off individual pixels, leading to a higher contrast ratio.[1] |
| Brightness | Typically much brighter, making them more suitable for well-lit rooms.[1] | Generally not as bright, performing better in darker environments. |
| Viewing Angle | Image quality can degrade when viewed from the side, with colors and contrast shifting. | Offers wider viewing angles with little to no loss of picture quality.[1] |
| Motion Handling | Can exhibit motion blur with fast-moving images due to slower response times. | Has a faster response time, resulting in smoother motion. |
| Power Consumption | Consumes significantly less energy. | Uses more electricity and generates more heat. |
| Lifespan | Generally has a longer lifespan, often rated at 60,000 hours or more. | Early models had shorter lifespans, though later models improved to 60,000-100,000 hours. |
| Screen Burn-in | Not susceptible to permanent image retention.[2] | Can be susceptible to burn-in, where a static image is permanently retained on the screen.[2] |
| Physical Profile | Can be made thinner and lighter. | Generally heavier and thicker. |
Picture Quality[edit]
The different technologies led to distinct advantages in picture quality. Plasma TVs were often praised for their superior contrast ratios and ability to produce deep, true blacks. Because each pixel is self-illuminating, a plasma screen can simply turn off pixels to represent black, whereas an LCD must try to block the constantly shining backlight, which often results in some light leakage.[1] Plasma technology also provided wider viewing angles and better motion response, making it a favorite for watching movies and sports.
LCD TVs, however, held a significant advantage in brightness.[1] Their use of a powerful backlight made them much better suited for viewing in brightly lit rooms where the dimmer display of a plasma TV could appear washed out.[1] While early LCDs struggled with color accuracy and response times, technological advancements, including the switch from CCFL to LED backlights, narrowed the performance gap over time.
Practical Considerations[edit]
Beyond picture quality, several practical factors influenced the market dominance of LCDs. LCD technology was more energy-efficient, consuming less power and generating less heat than plasma displays. LCDs were also lighter and available in a wider range of sizes, particularly smaller ones, whereas plasma TVs were typically only available in larger screen sizes of 40 inches and above.
Plasma TVs had issues with screen burn-in, where static images could become permanently etched into the screen, although later models incorporated technologies to mitigate this.[2] They could also be affected by altitude, with some models producing a buzzing sound at higher elevations due to the pressure difference between the gas inside the screen and the ambient air. Ultimately, the lower manufacturing costs, greater energy efficiency, and higher brightness of LCDs led to their widespread adoption.[1]
