Differences between NTSC and PAL
Contents
Comparison Article[edit]
NTSC and PAL were the two dominant analogue television color encoding systems, now largely superseded by digital standards.[1][2] The National Television System Committee (NTSC) developed its standard in the United States in 1953 to ensure compatibility with existing black-and-white televisions.[3][4] PAL, or Phase Alternating Line, was developed in West Germany in the early 1960s to address some of the shortcomings of the NTSC standard, particularly color tone shifting under poor signal conditions.[5] A third system, SECAM (Séquentiel couleur à mémoire), was developed in France around the same time and saw use in some other regions.
The choice between NTSC and PAL was largely dependent on the electrical grid frequency of a given region. NTSC[1] was designed for regions with a 60 Hz electricity supply, while PAL was suited for 50 Hz grids. This[1] fundamental difference influenced the frame rates of the two systems. While digital broadcasting has made these standards mostly historical, they remain relevant for understanding the regional differences in older media formats like VHS tapes and some DVDs. The[3] regional distribution of these formats also influenced the video game market, with games often being region-locked to either NTSC or PAL territories.

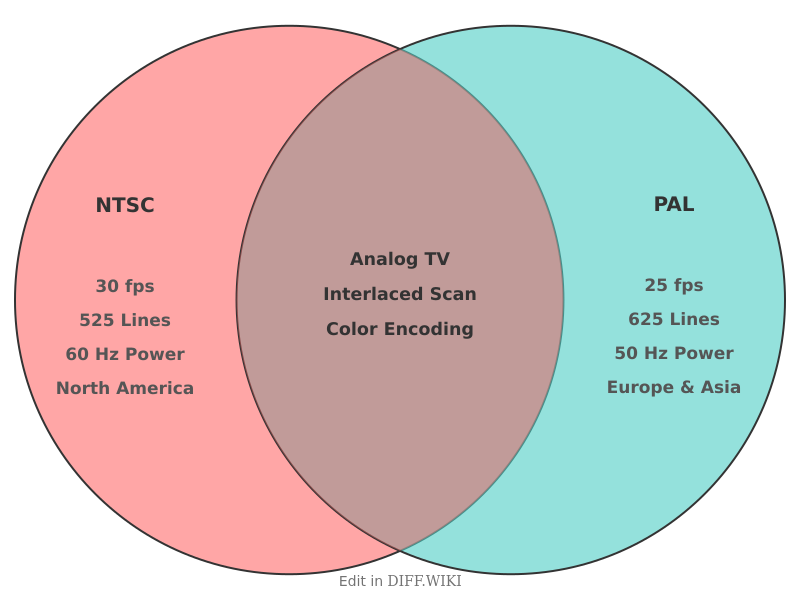

[3]== Comparison Table ==[edit]
| Category | NTSC | PAL |
|---|---|---|
| Full Name | National Television System Committee | [5] Phase Alternating Line |
| Year of Development | 1953 | [3] 1963 |
| Geographical Usage | North America, Japan, most of South America | [3][4] Europe, Australia, most of Asia, Africa, and parts of South America |
| Frame Rate | 29.97 frames per second (historically 30 fps) | [1] 25 frames per second |
| Resolution (Visible Lines) | 480 lines | [1] 576 lines |
| Power Frequency | 60 Hz | [1] 50 Hz |
| Color Encoding | Encodes color information that could be susceptible to phase errors, causing color shifts. | [3] Alternates the phase of the color signal on each line to cancel out phase errors, resulting in more stable color. |
Frame Rate and Resolution[edit]
The most significant technical differences between NTSC and PAL are their frame rate and resolution. NTSC has a frame rate of approximately 29.97 frames per second, which was tied to the 60 Hz power standard in the Americas and Japan. PAL operates at 25 frames per second, compatible with the 50 Hz power grids common in Europe and other regions. This difference in frame rate can be noticeable in the depiction of motion.
In[1] terms of resolution, PAL has an advantage with 625 total lines of resolution, of which 576 are visible. NTSC has 525 total lines, with 480 visible. The higher number of scan lines gives PAL a 20% greater vertical resolution, which can result in a more detailed image.
Color System[edit]
The method of encoding color information is a key differentiator. The NTSC system was susceptible to phase errors in the broadcast signal, which could cause shifts in color hue. This[3] led to the colloquial backronym "Never The Same Color." To address this, the PAL system was designed to reverse the phase of the color signal on alternate lines. This[3] technique effectively cancels out phase errors, leading to more consistent and accurate color reproduction. While this method improves color stability, it can slightly reduce the vertical color resolution, though this effect is generally not perceptible to the human eye.[3]
